HEAT TRANSFER DIMPLE JACKET

Dimple Jacket Fabrications & Welding

CMPI provided mechanical dimple jackets are sheets of metal with equally spaced depressions, or dimples, pressed into the metal to provide contact points for welding to a base, such as a tank or pressure vessel. We can easily attach dimpled sheets to the outside of your fabrications to optimize media flow.

This pressure directs cooling water or steam and allows for optimal heat transfer to control the temperature of your tank. Our affordable and high quality work extends your tank's lifespan and improves your bottom line.

Dimple Jackets, Fabrication, & Welding

As professional dimple jacket manufacturers, CMPI mechanical dimple jackets are sheets of metal with equally spaced depressions, or dimples, pressed into the metal to provide contact points for welding to a base, such as a tank or pressure vessel. We can easily attach dimpled sheets to the outside of your fabrications to optimize media flow.


This pressure directs cooling water or steam and allows for optimal heat transfer to control the temperature of your tank. Our affordable and high-quality dimple plate jacket welding extends your tank's lifespan and improves your bottom line. We manufacture various dimple jacket tanks for a large array of industries. As the standard feature of many tanks and vessels, dimple jackets are an important component in many applications.  Our welding and fabrication services for dimple jackets are customized to fit your specific requirements, providing you top-quality components at the best prices around. Choose from a large selection of heat transfer dimple jackets for every need. Contact our experts to learn more about our dimple jacket fabrication and welding services and to request a quote today!

We set the industry standard with precision dimple jackets for your DIY tank fabrications!

Layouts and thicknesses vary based on customer requested pressure rating requirements. We offer eight styles of dimple jacket with varying hole diameters, depths, and spacing, to meet the standards that our clients specify. We sell dimple in the flat as sheets or cutout shapes, dished or rolled to fit for install. We also provide full manufacturing services of dimple jacketed pressure vessels and tank components.

Supply your own material, fabrications, and drawings, or allow us to provide the metal and processing at a great price. Give us a call today, or use our contact form to send us information about your job, and we'll provide a quick quote!

We set the industry standard with precision dimple jackets and dimple jacketed tank design for your DIY tank fabrications!

Layouts and thicknesses vary based on customer requested pressure rating requirements. We offer eight styles of dimple jacket with varying hole diameters, depths, and spacing, to meet the standards that our clients specify. We sell dimple in the flat as sheets or cutout shapes, dished or rolled to fit for install. We also provide full manufacturing services of dimple jacketed pressure vessels and tank components.


Supply your own material, fabrications, and drawings, or allow us to provide the metal and processing at a great price. Contact and ask us for more information about tank jacket heating, dimple plate jackets, and laser welded dimple jackets as well! Give us a call today, or use our contact form to send us information about your job, and we'll provide a quick quote!

Heat-Transfer Dimple Jacket, Welding & Fabrications

CMPI heat transfer surfaces are used with steam, hot & cold water, glycol and other heating & cooling mediums.

FABRICATION OPTIONS

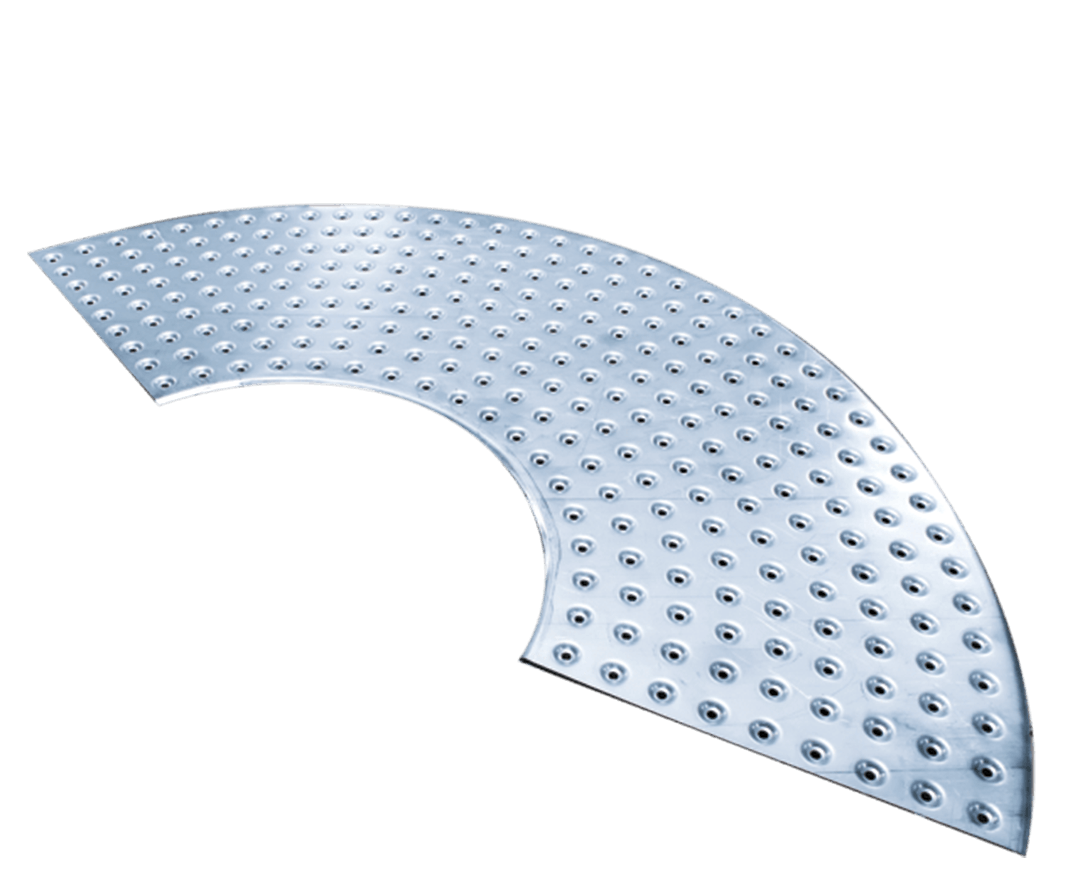

  • Flat sheets with straight or radial patterns cut and formed to spec

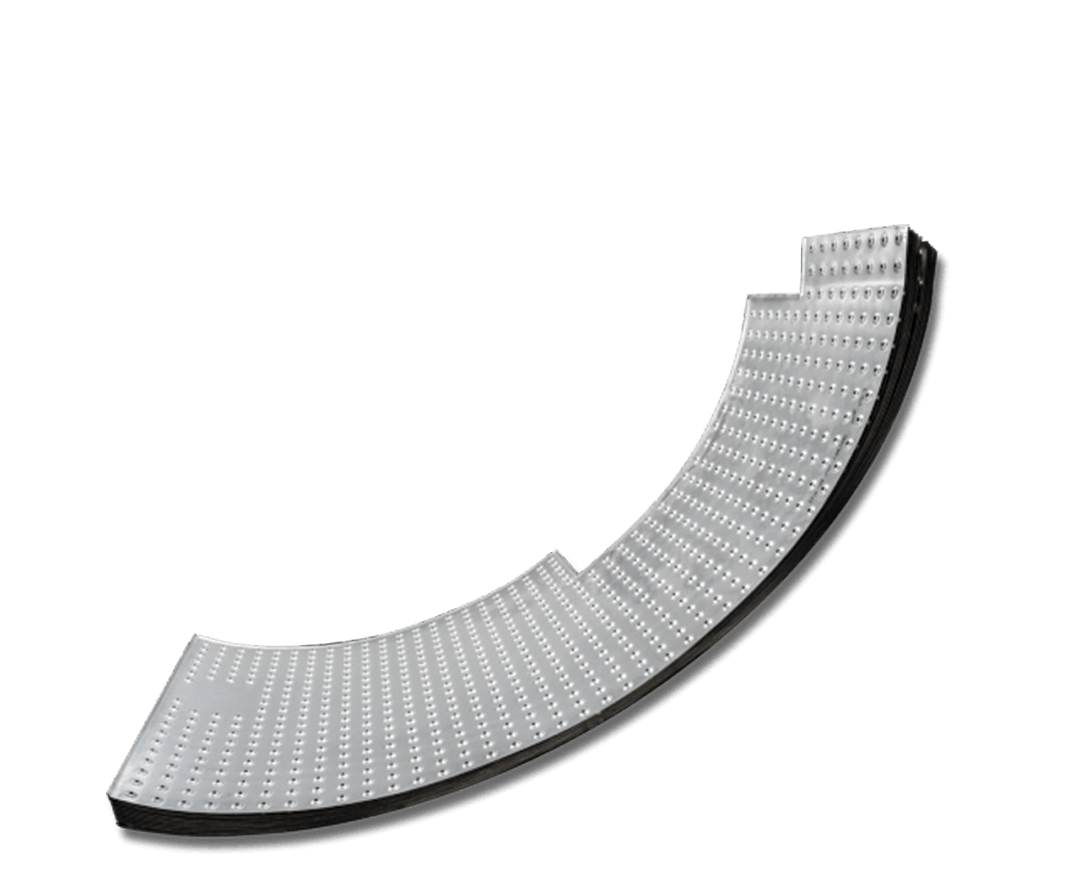

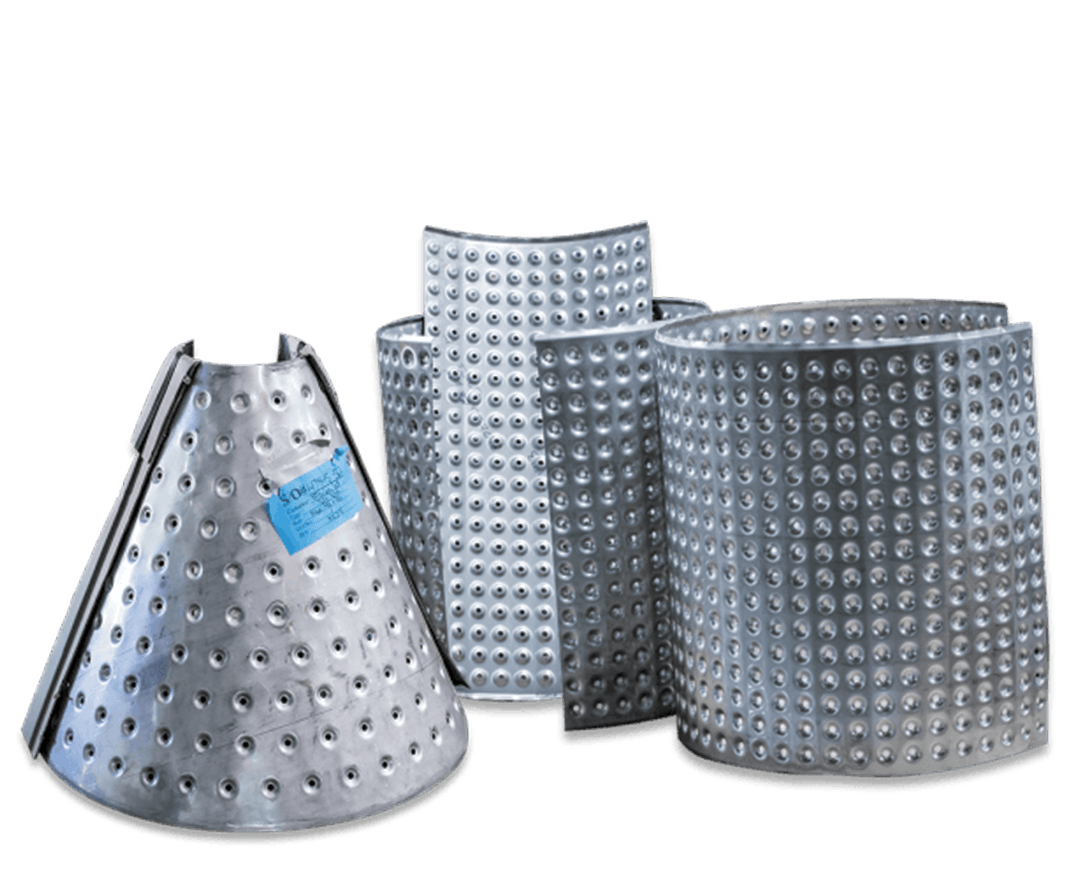

  • Rolled sheets and shells with cutouts

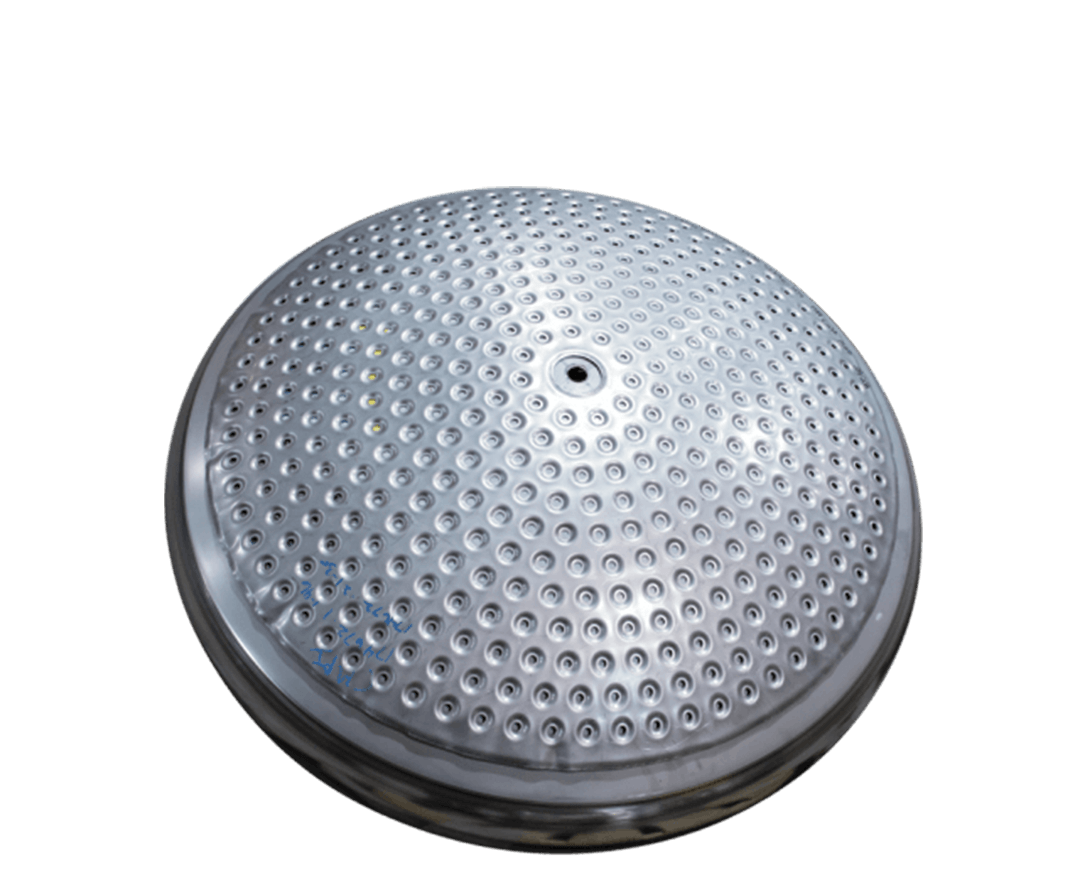

  • Dished heads, flat heads, and cone sections

SIMPLE INSTALLATION

  • Fabrications formed to fit your exact dimensional requirements, making your install a cinch
  • Crimped edges for easier welding and fitup to your fabrication

ASME CERTIFIED COMPONENTS

  • Proof test panels are available on request per ASME standards. More Info on ASME Components
  • CMPI can provide fully welded dimple fabrications with ASME Code stamp.

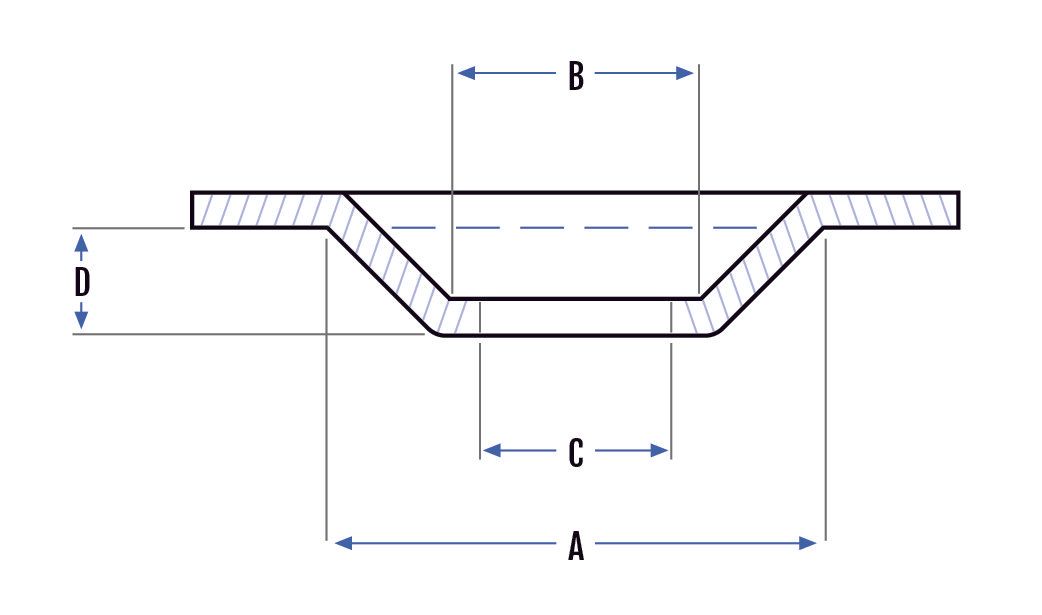

DIMPLE JACKET SPECIFICATIONS

Heat-Transfer Dimple Jacket, Welding & Fabrications

CMPI heat transfer surfaces are used with steam, hot & cold water, glycol and other heating & cooling mediums.

FABRICATION OPTIONS

  • Flat sheets with straight or radial patterns cut and formed to spec
  • Rolled sheets and shells with cutouts
  • Dished heads, flat heads, and cone sections

SIMPLE INSTALLATION

  • Fabrications formed to fit your exact dimensional requirements, making your install a cinch
  • Crimped edges for easier welding and fitup to your fabrication

ASME CERTIFIED COMPONENTS

DIMPLE JACKET SPECIFICATIONS

DIMENSIONS ARE IN INCHES

TURN -KEY Service - The CMPI Advantage!

Save time

Combine our polishing and fabrication services to shorten lead times for your most demanding customers.

Customization

Our products don't come off a shelf. CMPI's stainless services are fully customized for each client.

Friendly support

Our friendly sales and design associates are ready and able to help you find the perfect polishing or fabrication solution.

Discount material

Supply your own material or let CMPI save you time and money by provide it for you with our high volume purchasing.

Curious about our quality? Our work speaks for itself!

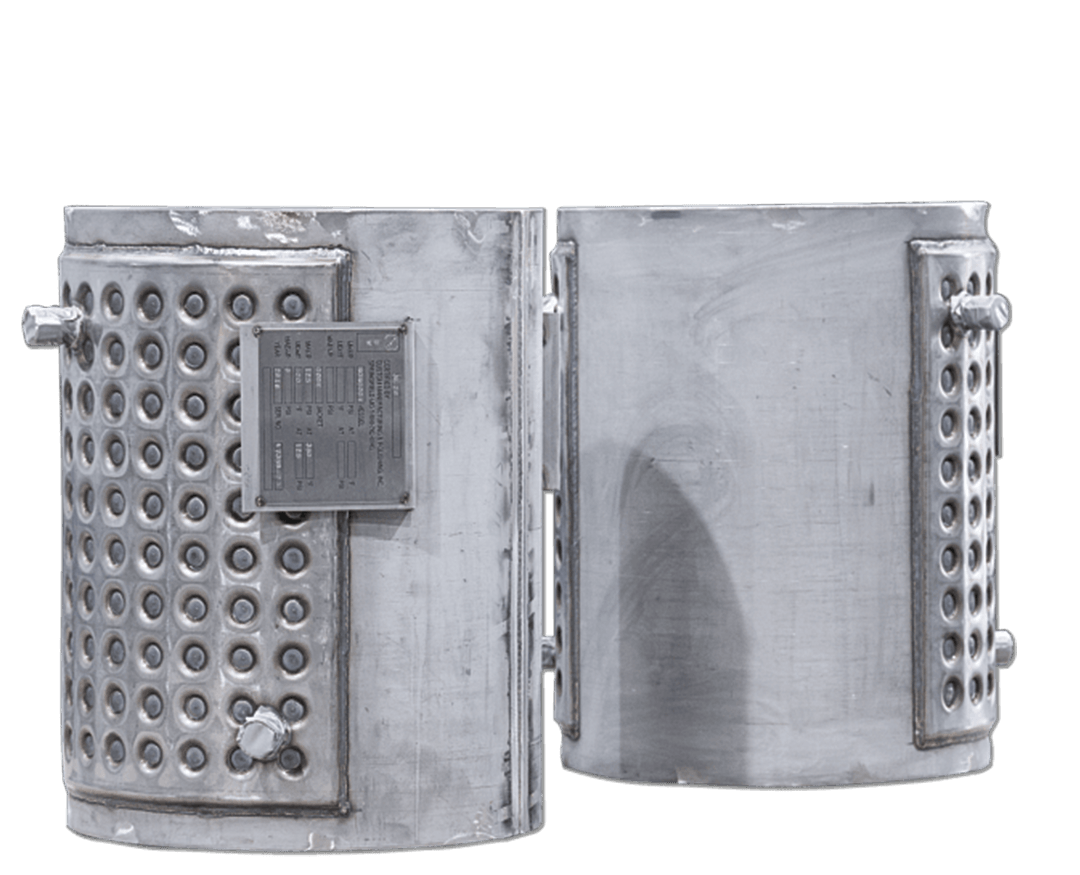

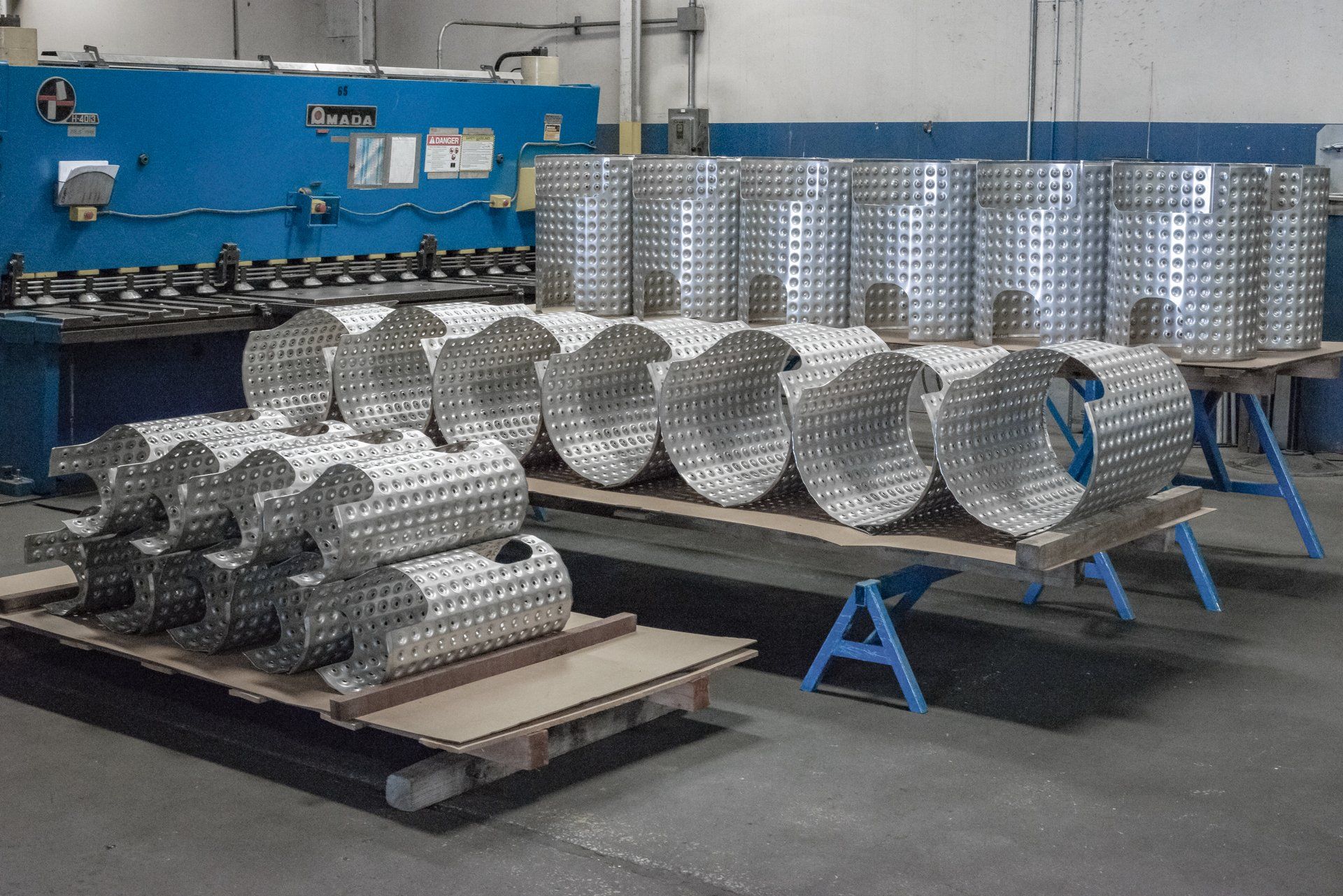

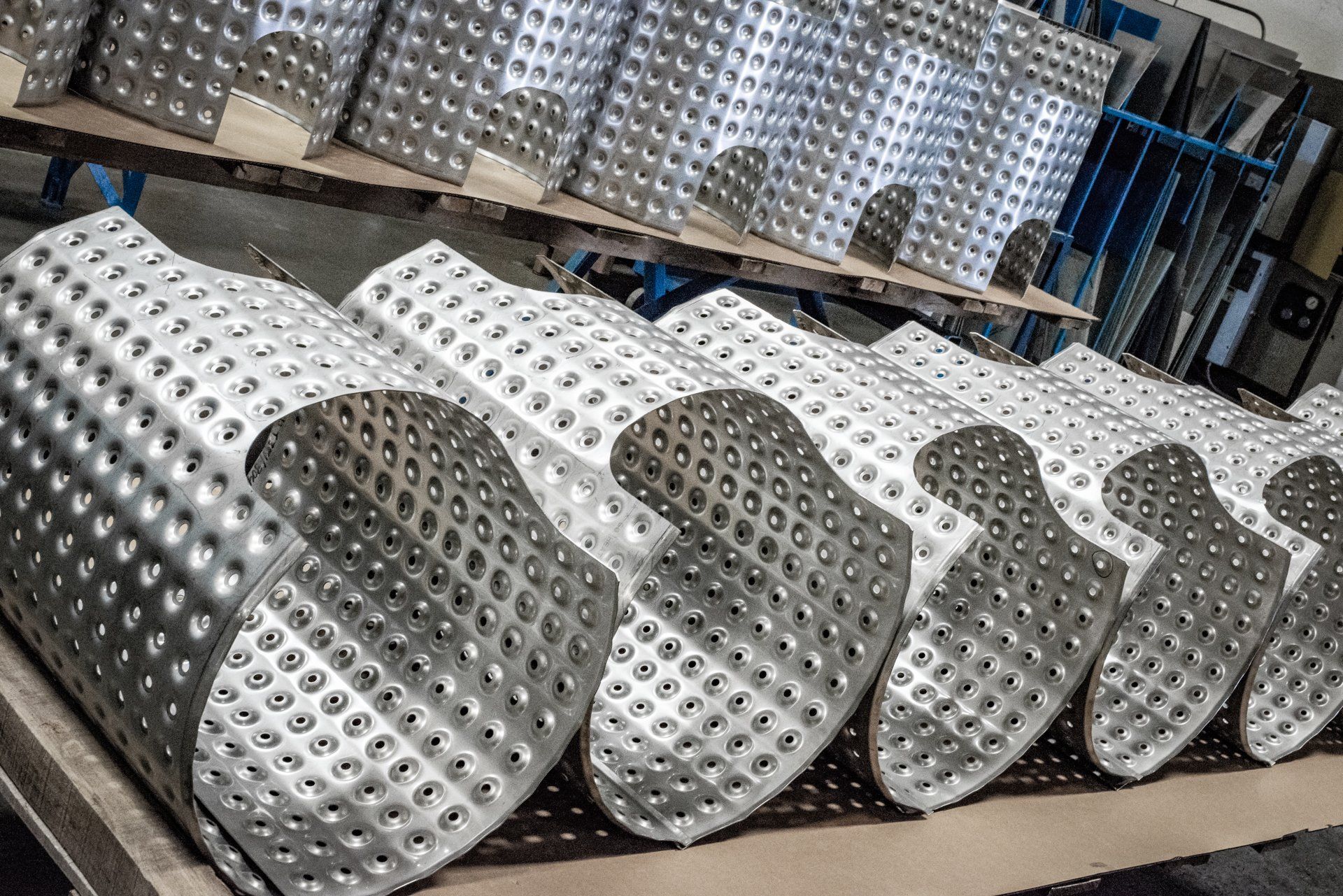

See below for photos of our dimple jacket welding fabrications. You can also download our Dimple Jacket Fabrication Specs PDF for reference.

CLICK IMAGES TO ENLARGE | VIEW CMPI PHOTO GALLERY

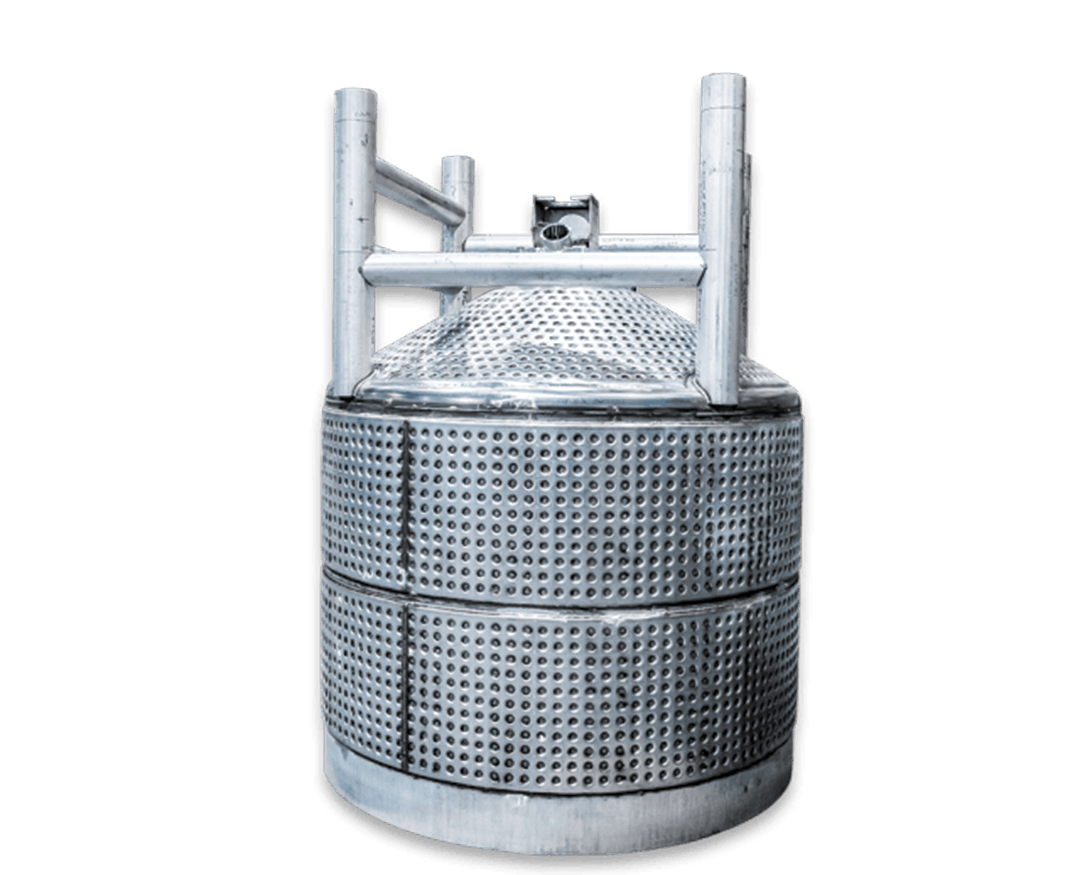

  • heat transfer custom manufacturing dished head stainless steel dimple jacket fabrication
  • Contact Us About Our Dimple Jacket!

    At CMPI, we want to be an extension of your plant. Each client has unique jobs, and over the years we've innovated creative solutions for problem-projects, big and small.

    If you don't see the services that you require listed here but you think we could help, contact us! Your custom job might be a perfect fit for our versatile shop.

    Our Standards Are Your Specifications!

    Contact Us

    ASME CODE COMPLIANT
    All applicable materials we provide have MTR's on file. As necessary, our materials and workmanship are in compliance with ASME and AWS guidelines.
